Model 130 - Steam,Water & Gas Sample Cooler
Description

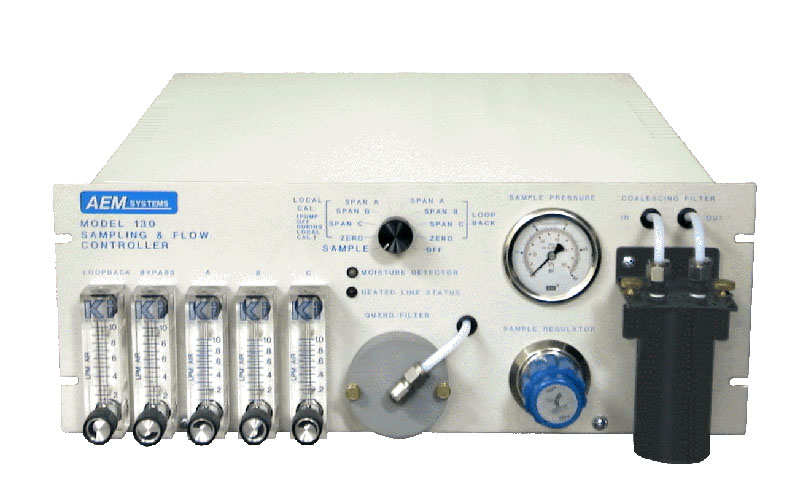

The sampling panel is used to distribute gas sample and calibration standards to gas analyzers. It controls the gas pressure and flowrate through the monitoring system. All operating and control functions are fully front panel assessable. Sample and calibration gas standards can be easily selected using a front panel switch. For un-heated sampling streams, a rotameter with valve monitors and controls the gas flow to each analyzer individually. The sample and calibration gas pressures are regulated to ensure proper analyzer calibration and measurement accuracy. Sample by-pass is available if fast-loop sampling is required. Coalescing and guard filters are provided to remove any particulate. All wetted parts are made of chemically inert material to assure sample representativeness.
The panel also supports loop-back calibration. This is an essential tool for complete system calibration and performance evaluation. Calibration gas standards can be introduced into the system near the sampling point. The calibration gas is exposed to the same flow path and conditioning as the sample gas. Any leak, contamination or other problems in the sampling path can be identified.
Specification
Un-Heated Gas Sampling Stream | |
Number of Sampling Outputs |
Three (3) standard, additional outputs optional |
Sample Flowrate |
0 - 1.5 LPM per Channel, individually controlled. Other ranges available |
Inlet Pressure |
10 to 50 psig. Higher pressures optional |
Sample Output Pressure (Regulated) |
0 to 40 psig (depending on inlet pressure) |
Sample Pressure Display (Regulated) |
Front Panel Gauge |
Sample Wetted Part |
Teflon and Stainless Steel |
Guard Filter |
Teflon wetted part, 47 mm |
Coalescing Filter |
Stainless Steel, Teflon, or Polyethylene wetted part |
Heated Gas Sampling Stream (Option) | |
Sample Flowrate |
0 - 1.5 LPM per Channel, other ranges available |
Inlet Pressure |
10 to 50 psig. Higher pressures optional |
Sample Output Pressure (Regulated) |
0 to 40 psig (depending on inlet pressure) |
Sample Pressure Display (Regulated)) |
Front Panel Gauge |
Sample Wetted Part |
Teflon and Stainless Steel |
Coalescing Filter (Optional) | Stainless Steel or Teflon wetted part |
Temperature Control |
160 - 180 oC, other temperature available |
Gas Analyzers Calibration | |
No. of Span Gas Inputs |
Three (3) standard, additional inputs optional |
No. of zero Gas Inputs |
One (1) standard, additional inputs optional |
Calibration Gas Selection |
Manual. Automatic control optional |
Loop-Back Calibration |
Manual, with flow control. Automatic control optional |
Front Panel Controls | Sample By-Pass, Loop-Back Flow Control, Calibration Selection |
Alarm Display | LED. Heated Line Status (requires Model 140 Temperature Controller), Moisture Alarm (requires Option 01) |
Mounting | 19" rack-mount |
Environment | 5 to 50 oC (41 to 122 oF), 90% RH non-condensing, non-corrosive, vibration and dust free |
Power Supply | 115 / 220 / 240 VAC 60 / 50 Hz 300W (with pump option) |
Dimensions | 19" W X 7" H |
