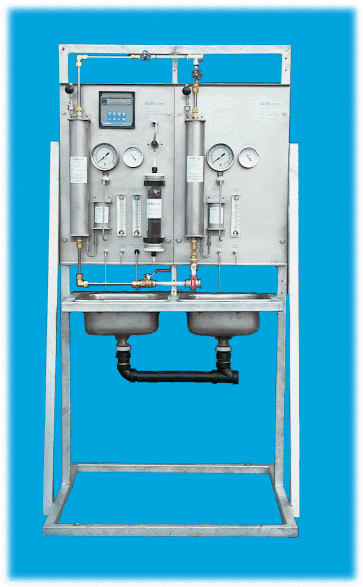

Model 710 - Steam and Fluid Sample Conditioning Module
Description
The Module is a complete stand-alone monitoring unit. It is capable of automatic continuous sampling and conditioning of steam and/or process fluid for analysis. With on-line analyzer (optional), steam and water quality can be analyzed for real-time control purposes, such as boiler blowdown control. The module consists of the following major components.
Sample Condensation / Cooling - A sample cooler will be used provided for sample condensation and cooling. It has a coiled tube in shell design with 316 stainless steel tube and 304 stainless steel shell.
Sample Pressure Reduction - Pressure Reduction is accomplished by using an orifice. This design assures steady pressure reduction and is fail-safe. The reducer is self-limiting and any accidental over-pressure release is not possible. There is no moving part and no consumable to replace.
Sample Pressure Display - Sample pressure after reduction is displayed by a pressure gauge.
Pressure Relief - This protects the sampling equipment and the grab sample from over-pressure.
Temperature Indication - Sample temperature after cooling will be provided stream.
On-line Analyzer (Optional) - Analyzer such as Conductivity, Cation Conductivity, pH, etc. can be incorporated. Sampling flowrate is user adjustable.
Grab Sample - Manual grab sample will be provided for subsequent analysis. Sample flowrate is user adjustable. An optional SS grab sample sink can be supplied.
Specification
| Number of Sampling Stream | One (1), Multiple stream available |
| Sample | |
Inlet Pressure Rating |
4,000 psig (27,600 KPA) @ 1,000 oF (538 oC) |
Outlet Pressure |
< 10 psig (70 KPa) |
Sample Wetted Part |
|
Sample Inlet and Outlet |
1/4" OD tubing |
| Cooling Water | |
Max. Inlet Temperature |
100 oF (38 oC) or lower |
Inlet Pressure Rating |
1,000 psig (6,900 KPa) @ 1,000 oF (538 oC) |
Operating Inlet Pressure |
50 psig (345 KPA) or higher |
Inlet & Outlet Fitting |
3/8" NPT Female |
| Mounting Plate | Aluminum, 316 SS Optional |
| Mounting | Wall mount |
| Dimensions | 29-1/2" (749mm) H X 18" (457mm) W |
Options
01 - Sample Inlet Isolation Valve, for inlet temp. up to 480 oF (250 oC)
02 - Sample Inlet Isolation Valve, for inlet temp. above 480 oF (250 oC)
03 - Sample Inlet Filter
04 - Sample Blowdown Valve
05 - SS Grab Sink
06 - 316 SS mounting plate
07 - Free - Standing Mounting Rack
08 - Cooling Water System Alarm
09 - Automatic Sample Shutoff
10 - Cooling Water Strainer
