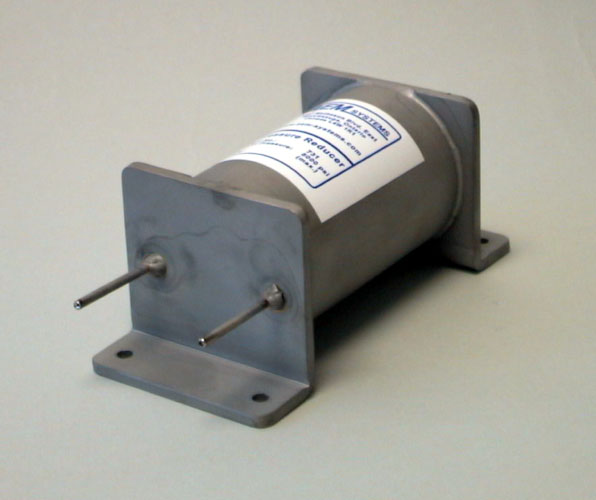

Model 731 - Liquid Pressure Reducer

For Boiler and Other Process Fluid
Fail - Safe, Steady Pressure Reduction
Stable Output Pressure and Flow
Self - Limiting. No Accidental Over - Pressure Release
No Moving Parts. No Diaphragm or Seal to Replace
Ruggedized for Industrial Applications
Safe and Reliable Operation
No Maintenance and Consumable Required

Specification

Inlet Pressure Rating	4,000 psig (27,600 KPa) @ 1,000 ^oF (538 ^oC)
Output Flow Rate	300 ml/min H₂O @ inlet pressure of 1000 psig (6,900 KPa). Other flow rates available. Consult factory.
Sample Wetted Part	316 stainless steel
Sample Inlet and Outlet	1/8" OD tubing
Mounting	Wall mount bracket
External Dimensions	2- 5/8" (67 mm) H X 3" (76 mm) W X 6" (152 mm) L

For related equipment specifications and details, see serparate brochures

Model 710 - Steam & Water Sample Conditioning Module, complete stand-alone sampling system
Model 720 - Steam & Water Cooler, for sample condensation and cooling
